ATAGO

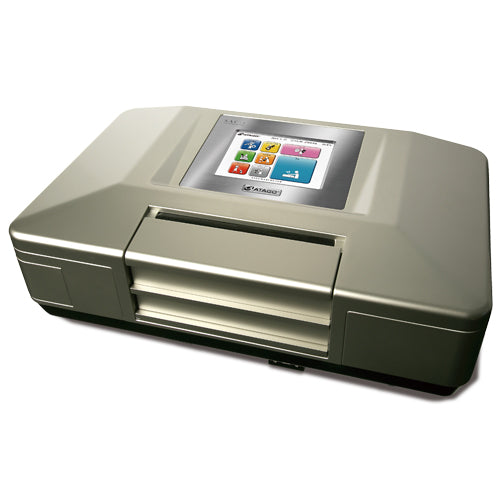

SAC-i Automatic Polarimeter / Saccharimeter
SAC-i Automatic Polarimeter / Saccharimeter
Regular price
Dh 171,000.00 MAD
Regular price
Sale price
Dh 171,000.00 MAD
Unit price
/
per
Couldn't load pickup availability
Main features
- FDA 21 CFR Part 11 compliant software included in standard delivery
- Measurement stability in 12 seconds (4 seconds in rapid and consecutive measurement mode)
- Resolution up to 3 decimal places
- Repeatability of ±0.003° in rotation angle and ±0.009°Z
- Up to 999 consecutive automatic measurements with average value display
- Sleep and timer function allowing a subsequent measurement to be taken at a set time
- Improved usability thanks to the touch screen
- Connectivity with RX digital refractometers for automatic purity measurement
Technical specifications
| Characteristic | Detail |
|---|---|
| Model | SAC-i |
| Reference (Cat. No.) | 5951 |
| Measuring range | Rotation angle: -89.9999 to +90.0000° or -360.0000 to +360.0000° |
| International saccharimetric scale: -259.0000 to +259.0000°Z | |
| Resolution | Rotation angle: 0.0001° |
| International saccharimetric scale: 0.0001°Z | |
| Precision | Rotation angle: |
| ±0.002° (-5.0 to +5.0°) | |
| ±0.005° (-45.0 to -5.0°, +5.0 to +45.0°) | |
| International saccharimetric scale: | |
| ±0.015°Z (-130.0 to +130.0°Z) | |
| Other measuring ranges | Rotation angle: ±0.010° |
| International saccharimetric scale: ±0.030°Z | |
| Temperature correction for ISS | 10 to 40°C |
| Measurement wavelength | 589 nm (equivalent to the sodium-D spectral line) |
| Dimensions and weight | 60 × 36.5 × 21 cm, 20.0 kg |
| Accessories included | PolariSoft (software) |
| Exit | DP-AD digital printer (sold separately), USB flash drive and PC - USB |
Similar models with different specifications are available.
Contact us for more information tailored to your needs.
